Sample Maker
Sample Maker A Sample Maker is a specialized cutting and creasing machine used to produce prototypes, samples, and short‑run production of corrugated boxes, folding cartons, POP displays, and other packaging.It allows packaging designers, sales teams, and converters to quickly create accurate samples for customer approval, structural testing, and pre‑production verification — without the need for […]
Cut-off Unit
Cut- off Section The Cut‑off Section (also called the cut‑off knife or NC cut‑off) is the part of the corrugator line that cuts the continuous corrugated board web into sheets of precise length at production speed.It sits after the slitter‑scorer and before the stacker, and is critical for: Length accuracy — ensuring sheets match order […]

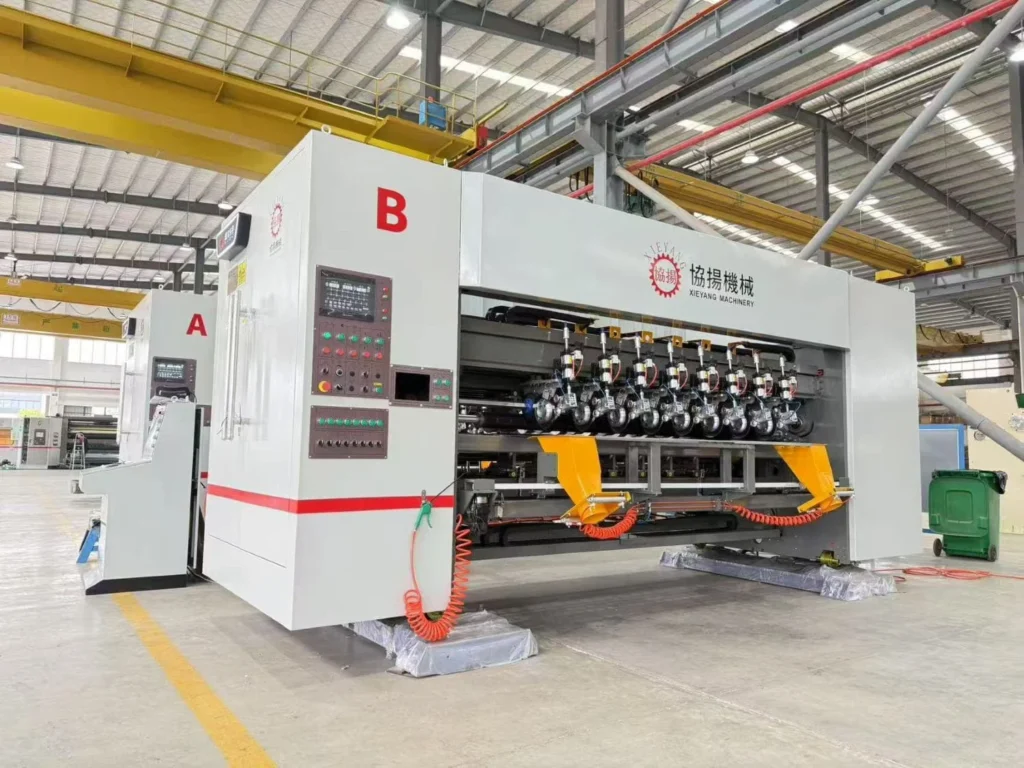

Slitter Scorer
Slitter Scorer The Slitter Scorer is the dry‑end converting module in a corrugator line that slits the continuous corrugated board web into the required widths and scores it with crease lines for folding.It prepares the board for the cut‑off knife and stacking, ensuring accurate dimensions, clean edges, and precise fold lines for downstream box‑making.It combines […]
Double Facer
Double Facer The Double backer (also called the double facer) is the section of a corrugator line where the single‑face web (fluted medium + one liner) is bonded to the outer liner to form single‑wall, double‑wall, or triple‑wall corrugated board.It uses heat, adhesive, and pressure to cure the glue applied in the glue machine, ensuring […]

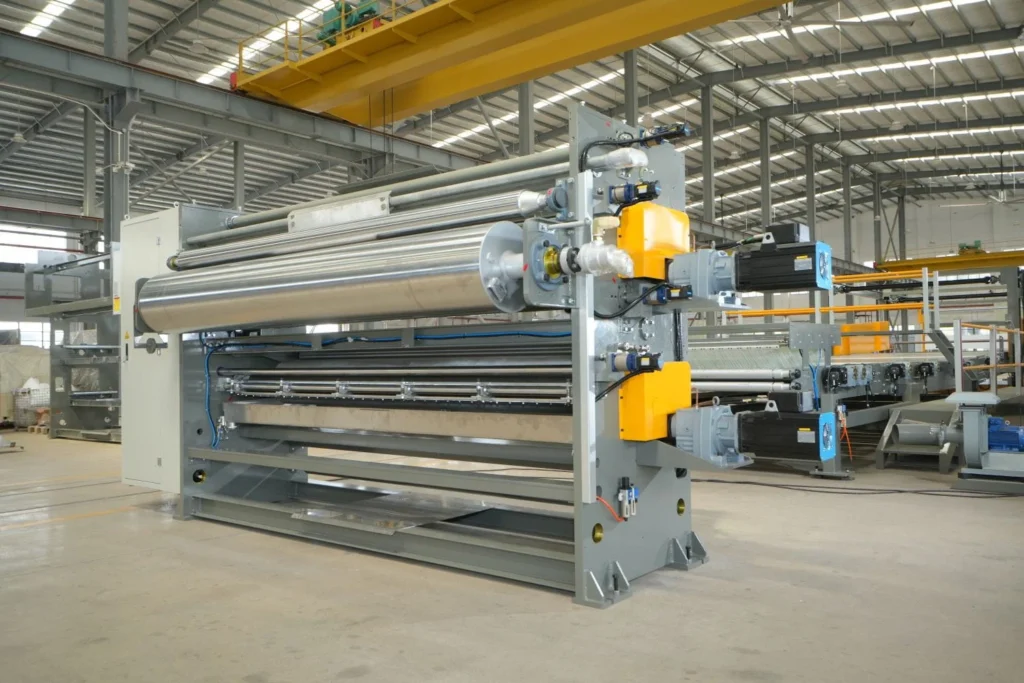

Glue Machine
Glue Machine In a corrugator line, the Glue Machine is the section that applies adhesive to the flute tips of the corrugated medium before bonding it to the liner in the double backer (or in the single facer for single‑face board).Its purpose is to deliver a precise, even film of starch‑based adhesive across the working […]

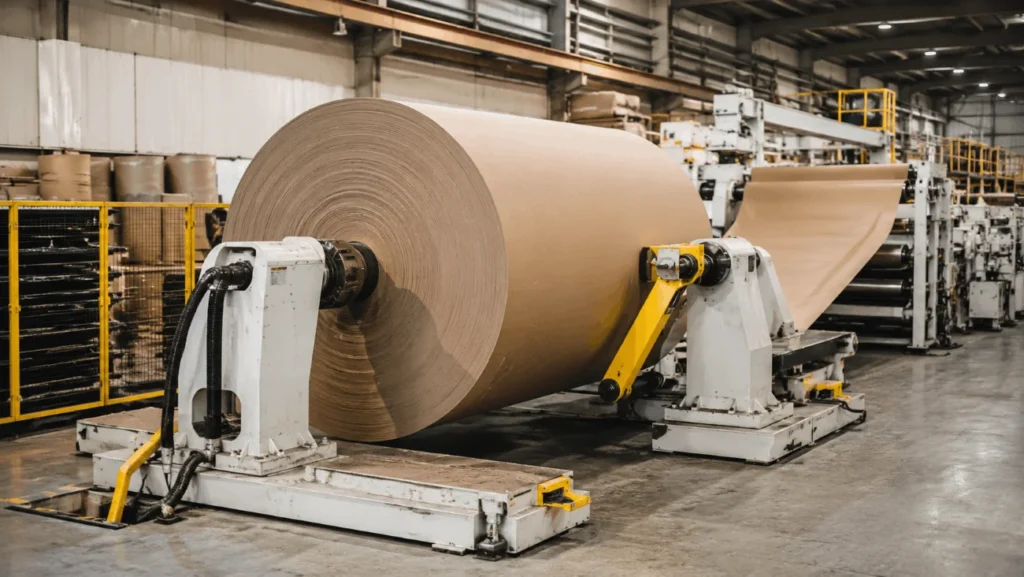

Mill Roll Stand
Mill Roll Stand A Mill Roll Stand is the unwinding unit in a corrugator line that supports, positions, and feeds paper rolls (liner and medium) into the machine.It holds the heavy paper reels, controls web tension, and allows fast roll changes to keep the line running continuously.Modern designs are shaftless — gripping the roll directly […]

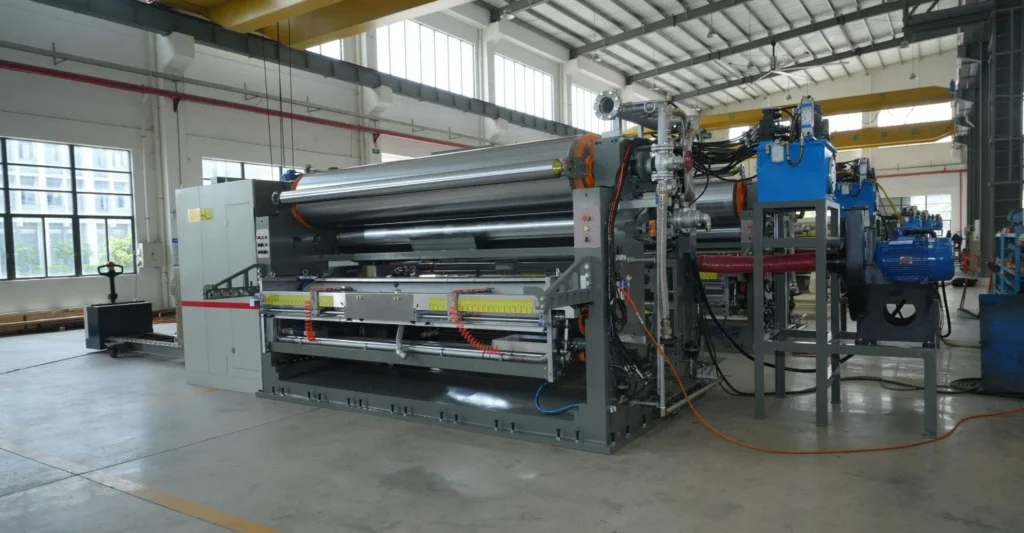

Single Facer
Single Facer THE HEART OF THE CORRUGATOR LINE It’s the first major section where the corrugated medium (fluting) is formed and glued to a liner to produce single‑face board. Single Facer Construction Features Corrugating Rolls Precision ground, heated rolls with flute profiles. Pressure Roll Presses liner to fluted medium for bonding Preheaters & Preconditioners Control […]
Corrugated line machinery components
Corrugated line machinery components Single Facer Mill Roll Stand Glue Machine Double Facer Slitter Scorer Cutoff Unit Sample Maker Strapping Machine Ink Kitchen preheater

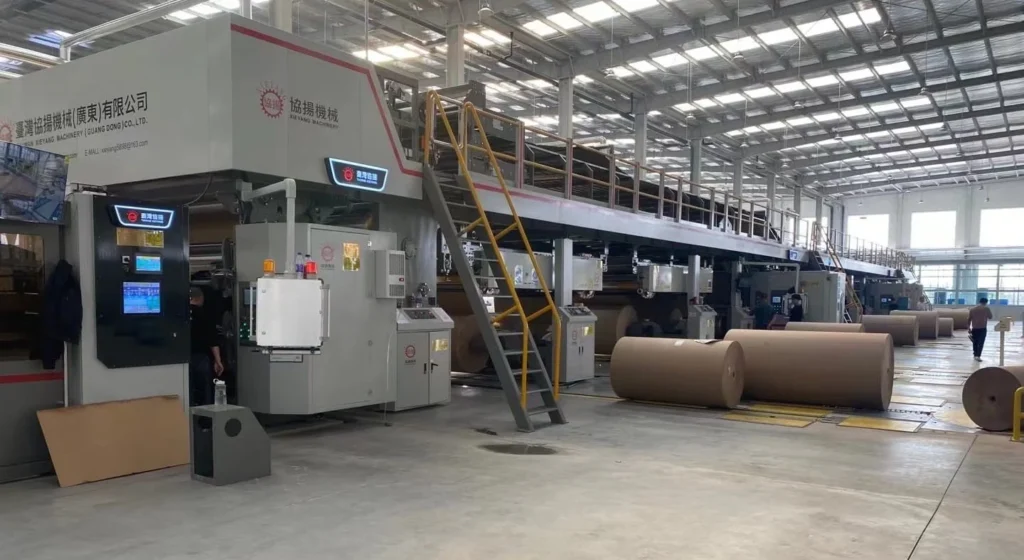

Upgrade solutions for old systems
Upgrade solutions for old systems Why Upgrade Instead of Replace? Lower Capital Cost Modernization can be 30–60% cheaper than a new line. Shorter Downtime Targeted retrofits can be done in phases, avoiding long production stops. Sustainability Extends asset life, reduces waste, and avoids scrapping large machinery. Performance Boost Modern controls, drives, and components can match […]

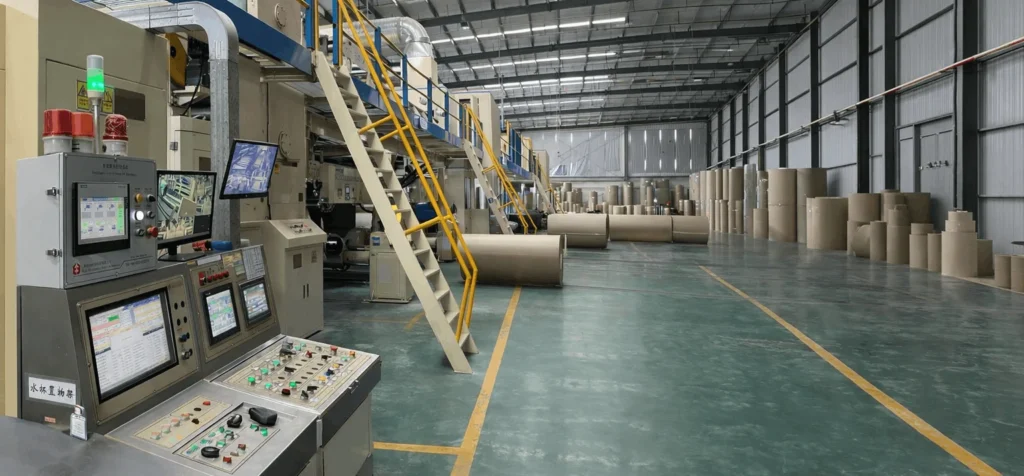

Complete Corrugator Line
Complete corrugator line A corrugator line is a series of integrated machines that transform paper rolls into finished corrugated board. Key sections include: Single Facer Mill Roll Stand Glue Machine Double Backer Slitter Scorer Cut off Stacker Bridge Conveyor Preheater Main Features & Functions Continuous Operation – Designed for high‑speed, nonstop production. Precision Control – […]
