Why Upgrade Instead of Replace?
Lower Capital Cost
Modernization can be 30–60% cheaper than a new line.
Shorter Downtime
Targeted retrofits can be done in phases, avoiding long production stops.
Sustainability
Extends asset life, reduces waste, and avoids scrapping large machinery.
Performance Boost
Modern controls, drives, and components can match or exceed new‑line KPIs
Common Upgrade Areas & Benefits
| Upgrade Area | Typical Improvements | Examples |
|---|---|---|
| Control Systems | Better precision, recipe storage, remote diagnostics | PLC & HMI upgrades, IoT integration |
| Single Facer | Faster flute changes, better bonding, less warp | Cassette-type single facers, improved preheaters |
| Double Backer | Energy savings, improved heat transfer | New hot plate sections, better belt tracking |
| Slitter-Scorer | Faster setups, cleaner cuts | Automatic positioning, digital scoring control |
| Cut-Off Knife | Higher speed, precise sheet length | Servo-driven knives, variable cut length |
| Stacker | Better sheet handling, reduced jams | Automatic downstacking, improved counting |
| Glue Systems | Reduced waste, better bond | Starch kitchen automation, precision applicators |
| Steam & Heat Systems | Energy efficiency, stable temps | Condensate recovery, steam rotary joint upgrades |
| Safety & Ergonomics | Compliance, operator comfort | Guarding, lighting, noise reduction |
Common Types of Upgrade Strategies
Performance Upgrades
Increase speed, reduce waste, improve quality
Obsolescence Management
Replace outdated controls and parts no longer supported
Energy Efficiency Retrofits
Heat recovery, variable speed drives, insulation
Automation & Digitalization
Recipe management, production tracking, predictive maintenance
Section by Section Modernization
Upgrade bottleneck machines first (e.g., single facer, cut off).
Latest Technology You Can Retrofit
- Quick‑Change Cassette Single Facers – Swap flute rolls in minutes.
- Servo‑Driven Slitters & Knives – Faster order changes, less waste.
- Automatic Warp Control – Sensors adjust heat and moisture in real time.
- Integrated Quality Monitoring – Cameras and sensors detect defects instantly.
- Energy Recovery Systems – Reuse exhaust heat for preheating liners.
- Remote Diagnostics – OEMs can troubleshoot without site visits.
Latest Technology You Can Retrofit
- Quick‑Change Cassette Single Facers – Swap flute rolls in minutes.
- Servo‑Driven Slitters & Knives – Faster order changes, less waste.
- Automatic Warp Control – Sensors adjust heat and moisture in real time.
- Integrated Quality Monitoring – Cameras and sensors detect defects instantly.
- Energy Recovery Systems – Reuse exhaust heat for preheating liners.
- Remote Diagnostics – OEMs can troubleshoot without site visits.
Key Parameters to Define Before Ordering Upgrades
Target Production Speed
Paper Grades & Flute Types
Machine Width
Bottleneck Sections
Energy Costs & Usage
Automation Level Desired
Budget & Payback Period

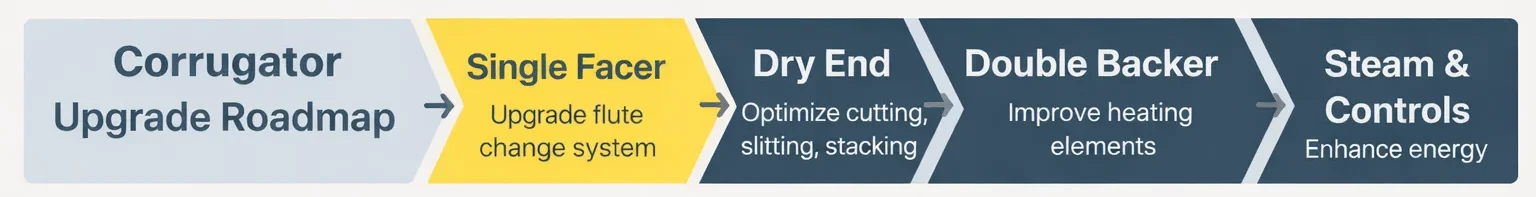

Here’s your Corrugator Upgrade Roadmap — a visual plan that prioritizes which sections of an older corrugator line to modernize first for the biggest return on investment.
How to read it:
- left to right = recommended upgrade sequence.
- Yellow = high‑impact, quick‑payback upgrades.
- Blue = follow‑on improvements that build on earlier gains.
Upgrade flow:
- Single Facer – Retrofit with quick‑change flute roll cassettes and improved preheaters to cut changeover time and improve bonding.
- Dry End (Slitter‑Scorer, Cut‑Off, Stacker) – Add servo drives, auto‑positioning, and precision controls for faster order changes and cleaner cuts.
- Double Backer – Upgrade heating plates, belt tracking, and pressure systems for better warp control and energy efficiency.
- Steam & Controls – Modernize steam rotary joints, condensate systems, and PLC/HMI controls for automation, energy savings, and real‑time quality monitoring.

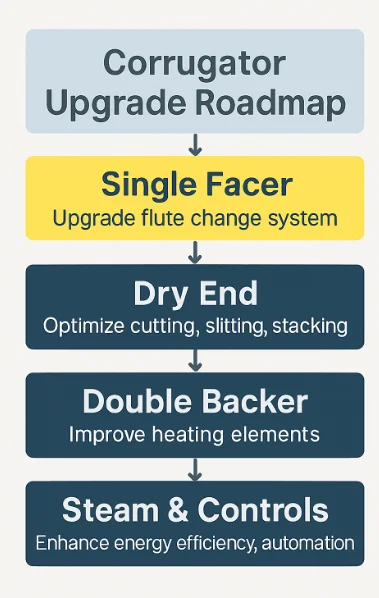

How to read it:
- top to bottom= recommended upgrade sequence.
- Yellow = high‑impact, quick‑payback upgrades.
- Blue = follow‑on improvements that build on earlier gains.
Upgrade flow:
- Single Facer – Retrofit with quick‑change flute roll cassettes and improved preheaters to cut changeover time and improve bonding.
- Dry End (Slitter‑Scorer, Cut‑Off, Stacker) – Add servo drives, auto‑positioning, and precision controls for faster order changes and cleaner cuts.
- Double Backer – Upgrade heating plates, belt tracking, and pressure systems for better warp control and energy efficiency.
- Steam & Controls – Modernize steam rotary joints, condensate systems, and PLC/HMI controls for automation, energy savings, and real‑time quality monitoring.
Benefits you can expect:
- Higher line speed without sacrificing quality.
- Reduced waste during order changes.
- Better board flatness and bonding.
- Lower energy consumption.
Easier operation and maintenance
Benefits you can expect:
- Higher line speed without sacrificing quality.
- Reduced waste during order changes.
- Better board flatness and bonding.
- Lower energy consumption.
- Easier operation and maintenance
